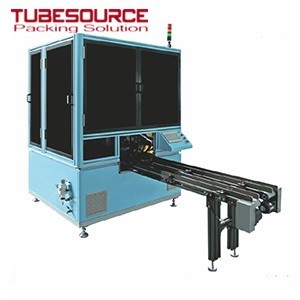

The hot stamping machine with mechanical driving rotary indexer, automatic loading & unloading systems and combined with PLC control system;
Adopted main components from Rexroth, Schneider, SMC, Mitsubishi etc. Mechanical parts made by CNC directly from CAD design;
Adopted PLC control system, touch screen interface. Quick setup & quick tooling change over;
Adopted with No-object No-printing system, auto counter, safety guard, out of working alarm device;
Main Parameters for Hot Stamping Machine |
|
1,Tube Dia |
16mm-60mm |
2,Max printing length |
200mm |
3,Max printing circle |
220mm |
4,Printing speed |
60pcs/min |
5,Power |
6KW |
6,Voltage |
380V 50Hz |
7,Air consumption |
0.6-0.8bar |
8,Dimension |
2550*1750*1800mm (L*W*H) |
9,Gross weight |
1000KG |
