Features:
Auto tube loading and color mark alignment;
Auto dosing and compressure;
First cooling and forming;
Second cooling and forming;
Third vaccum cooling;
|

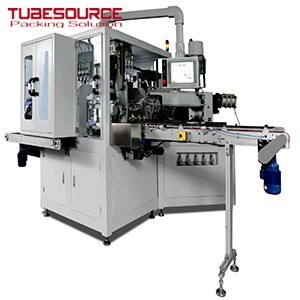

Main Parameters for Auto Heading Machine |
|
|
1,Mold station |
8 station, 4 mandrel per station |
|
2,Tube diameter |
19mm to 45mm; 25mm to 50mm |
|
3,Tube length |
90mm to 200mm |
|
4,Speed with color sensor |
90pcs/min |
|
5,Speed without color sensor |
110pcs/min |
|
6,Compressed Air |
10 bar |
|
7,Voltage |
3phase 380V 50HZ/60HZ |
|
8,Power |
30kw |
|
9,Consumption power |
20KW |
|
10,Max Noise |
85dBA |
|
11,Machine Dimension |
3700mm*2800mm*2200mm(L*W*H) |
|
12,Total weight |
3200KG |
