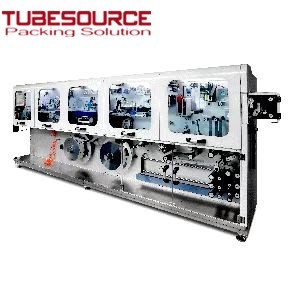

Laminate Tube Body Making Machine

Features:

Automatic unwinding tension control;

Non-stop splicing platform;

Double web guider system;

Double steel belting system with heating;

Whole machine is drived with servo system;

The machine adopts Omron motion control system;

Cutting menthod: Rotary cutting;

Main Parameters for Laminate Tube Body Making Machine
1,Laminate web thickness	0.22mm-0.5mm
2,Available laminate web	ABL, PBL, PML, AML
3,Tube diameter	12.7mm to 35mm; 16mm to 60mm
4,Tube length	50mm to 210mm
5,Cutting speed	120-200pcs/min; 12-27m/min
6, Compressed Air	0.5Mpa
7,Max unwinding diameter	800mm
8,Unwinding shaft diameter	3”
9,Voltage	3phase 380V 50HZ/60HZ
10,Power	20kw
11,Consumption power	10KW
12,Max Noise	85dBA
13,Machine Dimension	4410mm1100mm1720mm(LWH)
14,Total weight	2500KG
