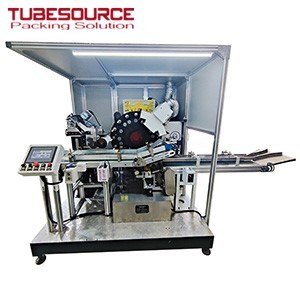

The Tube Varnishing Machine is suitable for PE Extruder tubes from dia16mm to dia60mm. After the varnishing, you can do the labeling directly.
| Specification for the Varnishing Machine | ||
| 1 | Servo motor 400W | 1set |
| 2 | Induction motor 120W | 2set |
| 3 | Induction motor 180W | 1set |
| 4 | Asynchronous motor 2.2KW | 1set |
| 5 | Inverter 2.2KW | 1set |
| 6 | PLC | 1set |
| 7 | HMI(Touch screen) | 1set |
| 8 | E-Brick UV system | 1set |
| 9 | Air cylinder | 5pcs |
| 10 | Push button | 5pcs |
| 11 | AC Contactor | 3pcs |
| 12 | Intermediate relay | 5pcs |
| 13 | Air switch | 6pcs |
| 14 | Cam splitter 14DF | 1pc |
| 15 | Air exhaust fan | 1set |
| 16 | Tubo charger | 1set |
| 17 | Speed | 60pcs/min |
| 18 | Tube size | 16-60mm |
| 19 | Machine weight | 2500KG |
